P23A Permanent Outdoor Lights

P23A Permanent Outdoor Lights

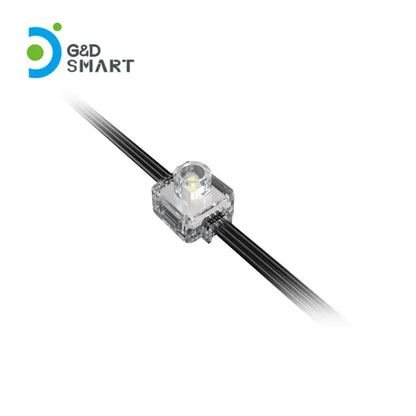

Compact 24V permanent outdoor RGBW light for through-hole or surface-mount roofline installation.

Key Specifications

• Voltage: DC24V
• Power: 0.96W
• Light source: 5050 RGBW, RGBW 3000K
• Control: SPI; the catalog also states TTL protocol support
• Spacing: 9 inch
• Standard string: 5 pcs
• Dimensions: Ø12 × H14.6 mm
• Shell: 945U PC, transparent
• Beam angle: 120°
• IP rating: IP67
• Operating temperature: -20 to 60°C
• Lifespan: ≥50,000 h
• Flame retardant: UL94-V0
• Catalog certification: CUL + FCC

System Compatibility

P23A is a 24V roofline light matched to the GC08 24V control-box platform. Choose 350W or 600W capacity according to the project load and branch layout.

• GC08 24V control-box platform — 350W or 600W according to project design

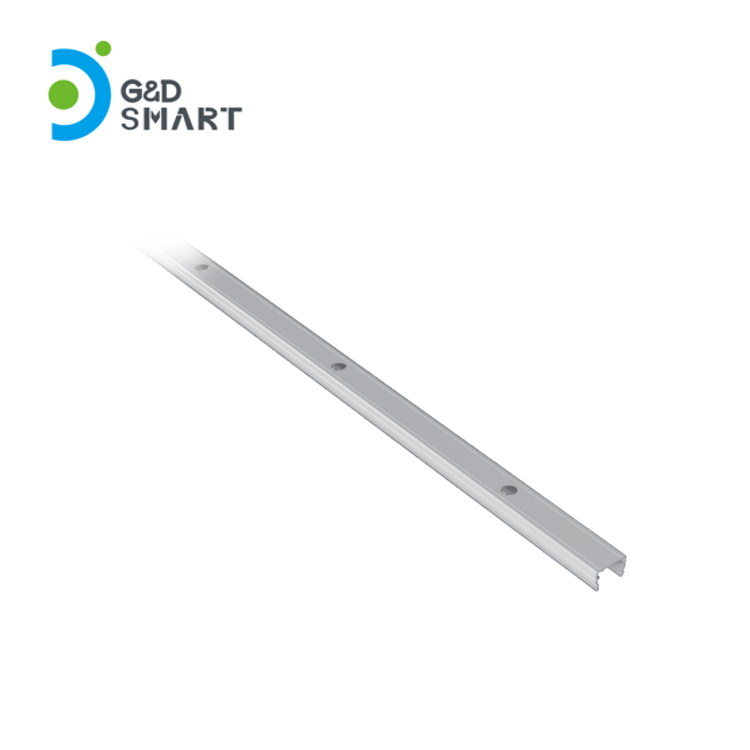

• P23 Installation Profile
• SH-M12A Extension Cable
• SFQ0401 Signal Amplifier

View the 24V system solution
