GDSMART
12mm Square Pixel Lights
12mm Square Pixel Lights
Couldn't load pickup availability

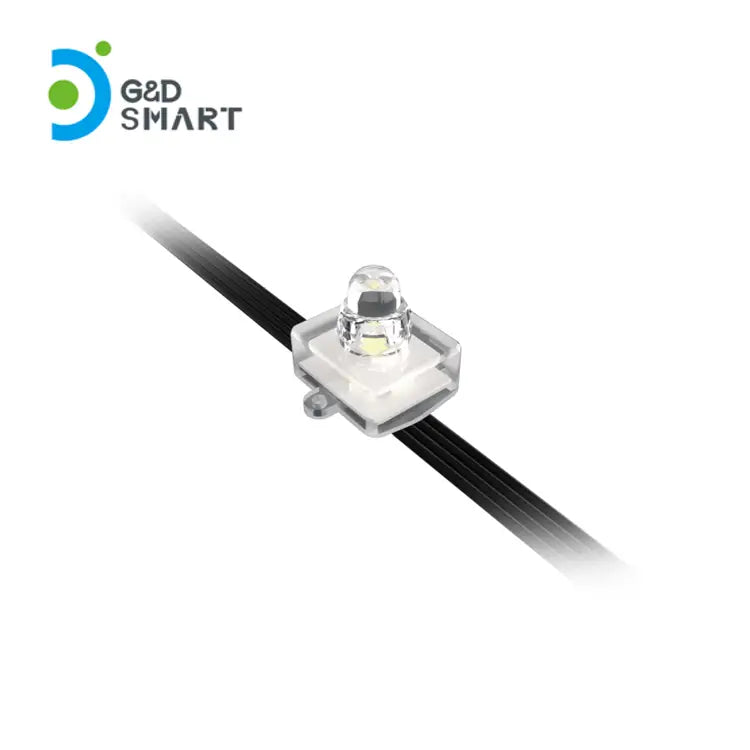

P12B Pixel Lights โ Professional Permanent Outdoor RGB Lighting
Ultra-Durable IP67 Pixel Modules for Year-Round Use
Key Features
๐ 180ยฐ Wide-Angle Glow
- Crystal-Clear PC Housing: Transparent casing ensures uniform light dispersion without hotspots.
- High-Intensity LEDs: 8-bit color depth (256 brightness levels) for smooth gradients.
๐ก๏ธ Military-Grade Protection
- IP67 Waterproof: Full dust/water resistance via potting process + ultrasonic welding.
- UV-Resistant & V0 Flame-Retardant: Withstands extreme temperatures (-30ยฐC to +60ยฐC).
โก Precision Control
- SPI Protocol: Compatible with S2811C/LB1908/19243 ICs for flicker-free performance.
-
Dual Voltage Options:
- 12V (W01/W02): 0.5W or 0.15W/pixel for energy efficiency.
- 24V (W03): 0.25W/pixel for long-distance runs (up to 50 LEDs/string).
Technical Specifications
| Model | P12XBW01 (12V) | P12XBW02 (12V) | P12XBW03 (24V) |
|---|---|---|---|
| IC Chip | S2811C | LB1908 | 19243 |
| Power | 0.5W/pixel | 0.15W/pixel | 0.25W/pixel |
| Housing | Transparent PC (100mm spacing) | ||
| Connectors | 13.5B 3-core waterproof (150mm leads) | ||
| Certifications | IP67, UL94 V0, UV400 |
Why Choose P12B?
โ
Permanent Outdoor Ready: IP67 potting + UV resistance for year-round durability.
โ
Easy Installation:
- 3M 2228 Adhesive Backing: Secure stick-on mounting.
-
Perforation/Trim Compatible: Fits standard aluminum profiles.
โ Plug-and-Play: Pre-assembled 50-pixel strings with waterproof connectors.
Applications
๐ก Permanent Outdoor Lights: Eaves, rooflines, and architectural outlines.
๐ Holiday Decor: Christmas, Halloween, and event lighting.
๐๏ธ Commercial Displays: Storefronts, signage, and stage designs.
