20mm 12V Pixel Ball Lights
20mm 12V Pixel Ball Lights
Couldn't load pickup availability

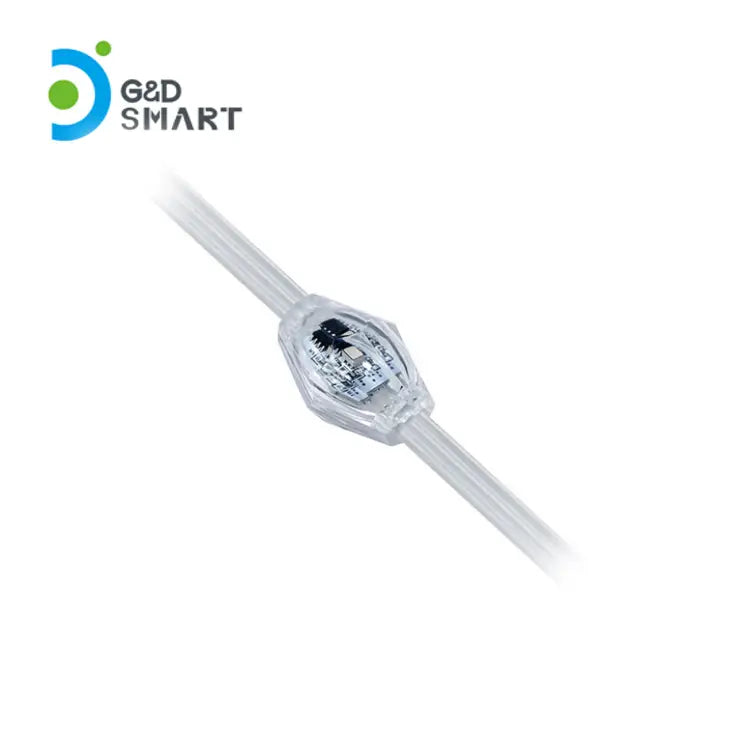

O20 Pixel Lights – Professional 3D Ceiling Light Strings
Ultra-Bright RGB Pixel Modules for Immersive 3D Effects
Key Features
✨ 360° Omnidirectional Glow
- Diamond-Pattern Transparent Housing: Dual-layer PC casing (A+B cover) for flawless light diffusion
- High-Resolution Color: 8-bit grayscale (256 levels) with smooth RGB transitions
🛡️ Industrial-Grade Protection
- IP67 Waterproof: Full potting with transparent adhesive + ultrasonic welding
- UV-Resistant & V0 Flame-Retardant: 30,000-hour lifespan (-30°C to +60°C)
⚡ Precision Control
- SM16703 IC Chip: SPI protocol for pixel-perfect synchronization
- 12V Low-Voltage: 0.7W/pixel (3535 LEDs) with 20AWG wiring
Technical Specifications
| Model | O20XA-W01 |
|---|---|
| Dimensions | 20×20×28mm (L×W×H) |
| LED Type | 3535 RGB (2pcs/module) |
| Control | SPI (SM16703 IC) |
| Voltage | 12V DC |
| Power | 0.7W/pixel |
| Color Temp | 2500K-3000K (adjustable) |
| Protection | IP67 (PU potting) |
| Connectors | 13.5B 3-core (150mm leads) |
| Packaging | 50 LEDs/string, 100mm spacing |
Why Choose O20?
✅ True 3D Lighting: Diamond-pattern housing creates volumetric effects
✅ Plug-and-Play: Pre-assembled strings with waterproof connectors
✅ Architect-Ready: Compatible with grid ceilings, truss systems
Applications
🎪 3D Ceiling Displays: Museums, exhibition halls
🏙️ Architectural Features: Atriums, stairwell lighting
🎭 Stage Productions: Hanging light curtains
