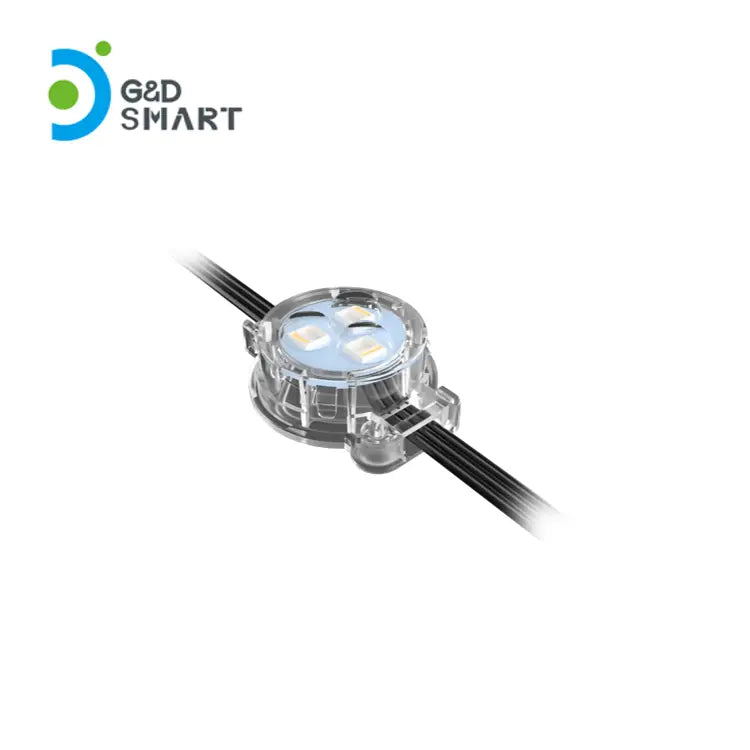

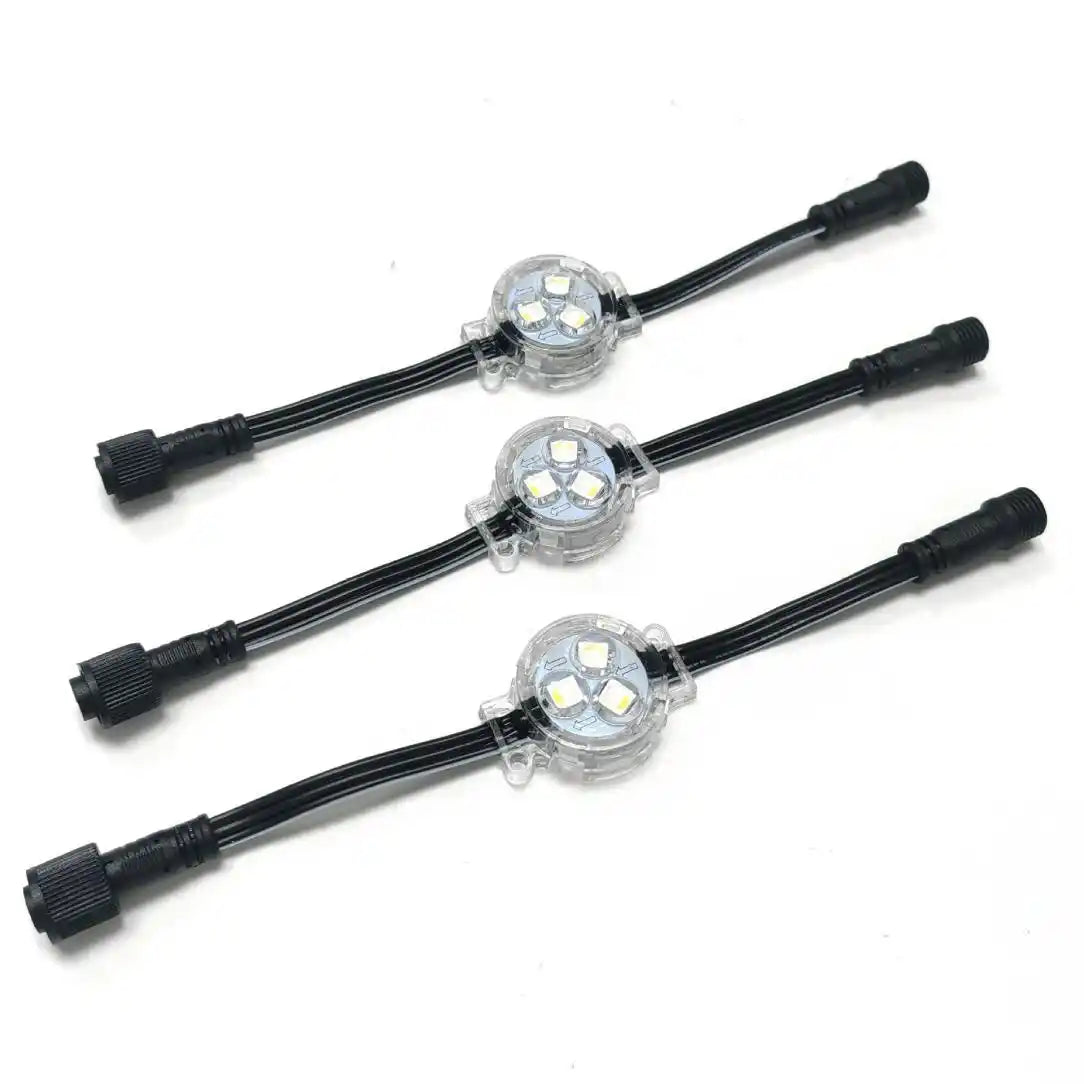

Name: 30mm 3 Diodes Permanent Outdoor Lights
Brand: GDSMART
Availability: InStock

30mm 3 Diodes Permanent Outdoor Lights

102 reviews

Ask For Pricing

Fast Shipping

By sea freight/air

Sample Avalible

Sample for testing

Warranty

3-Year warranty policy

After-Sale Service

24/7 support

Voltage

12V

24V

36V

Spacing

12"

4"

6"

9"

Single Light

Product Specifications
Product Details
Product Services

Technical Specifications

Basic Information

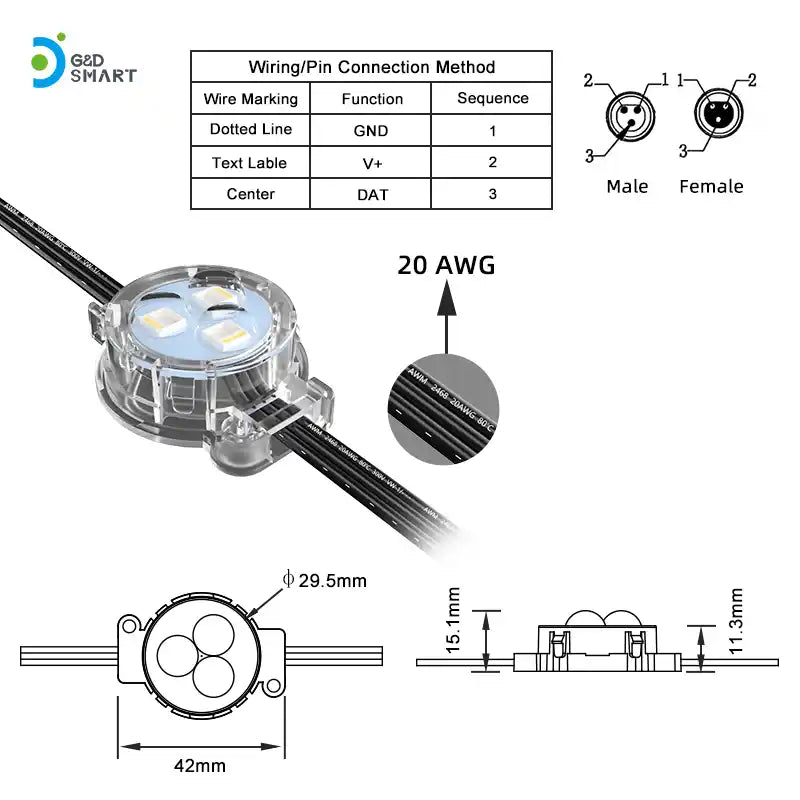

This product is available in multiple voltage specifications: 12V, 24V, and 36V. The single light power is 0.86W for 12V and 0.96W for both 24V and 36V. The spacing is available in 4, 6, 9, and 12 inches. There is a single light string option with a connector wire length of 150mm on both ends. The control method is SPI, with a total of three light beads.

Display Color

RGBW

Color Temperature

3000K

IC Model

UCS2904

LED Chip Model

5050

IP Grade

Magnesium alloy, plastic

Display Color

RGBW

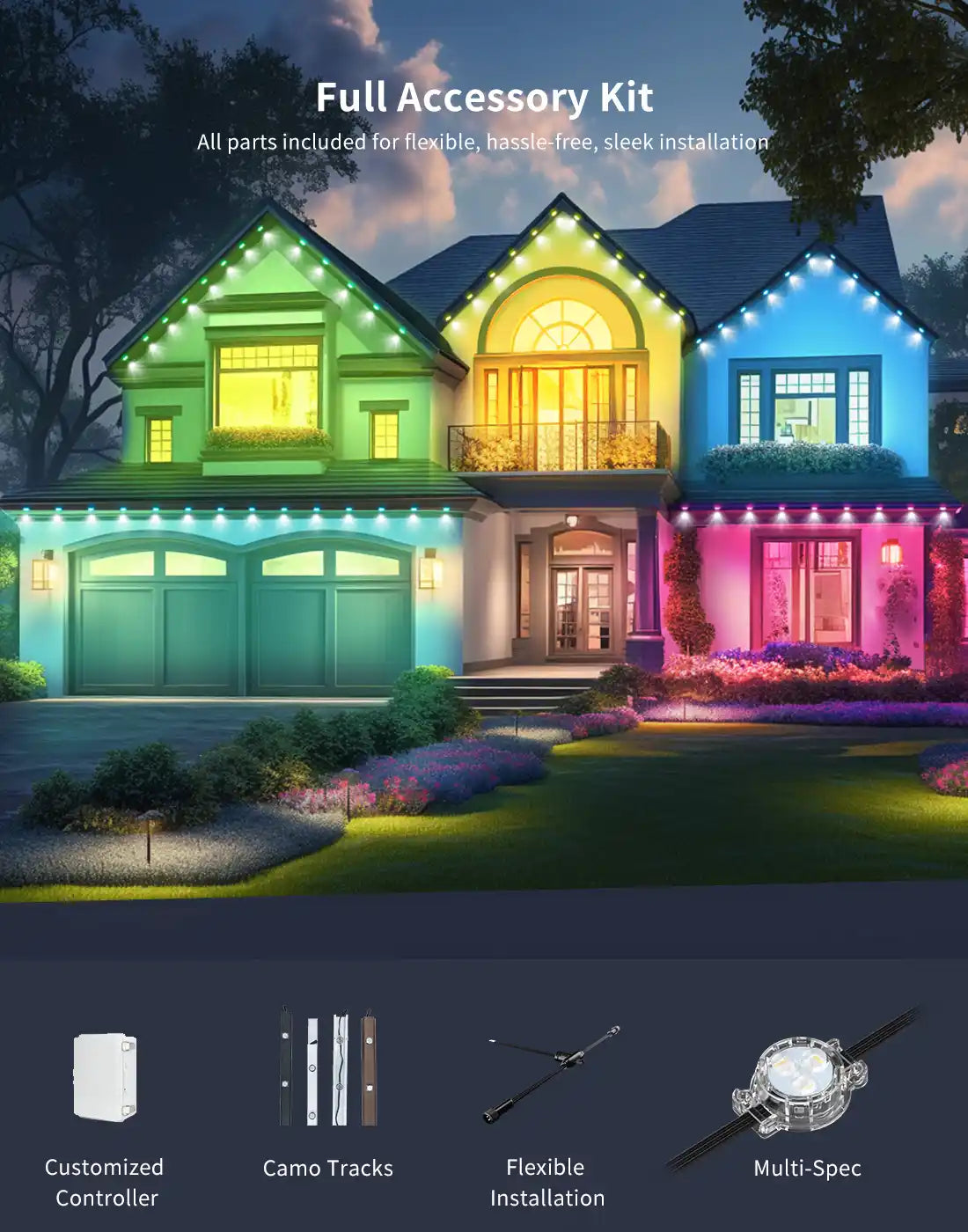

What's our Accessories

Aluminum Tracks
Connectors
Extensions
Surplife Controller
Signal Booster

Professional Support

Shipping

Our shipping agency offers global shipping, and we have an warehouse in California, USA. We work with DHL, UPS, USPS, Amazon Shipping. We provide both sea and air transport.

24/7 Support Desk

For questions and problems, you can always
get in touch with our sales and technical support, so we can get you back, up and running.

A CLOSER LOOK

EXPLORE POPULAR PERMANENT LIGHTS

High Brightness

Adjustable higher brightness for greater flexibility.

High Safety Standards

Waterproof and fireproof with high ratings, ensuring reliability in any harsh environment.

Cut & Splice

Can be freely cut and spliced to suit various scenarios.

Direct Factory Sales

No middlemen, offering the best quality and price.

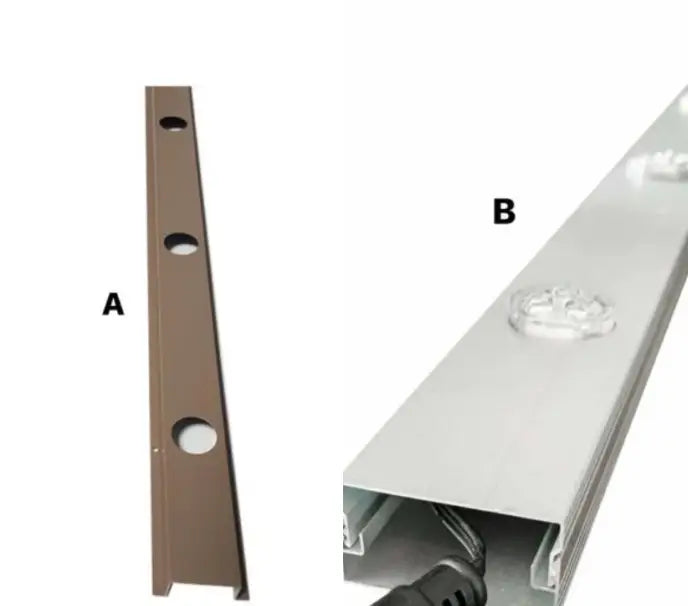

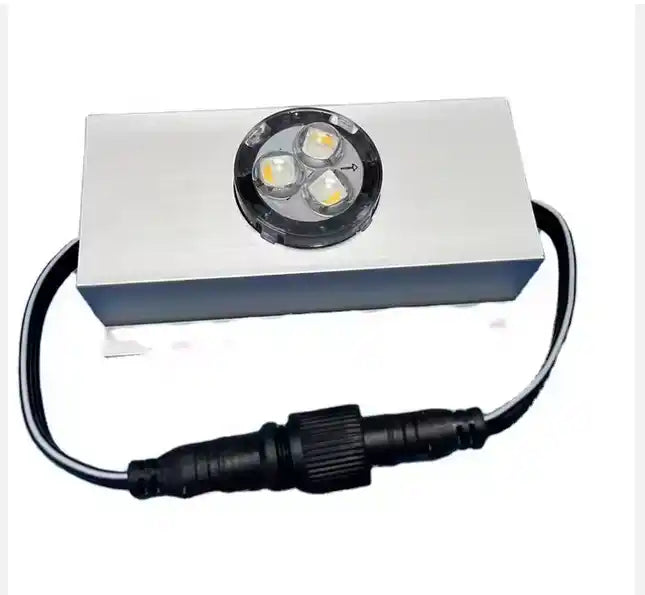

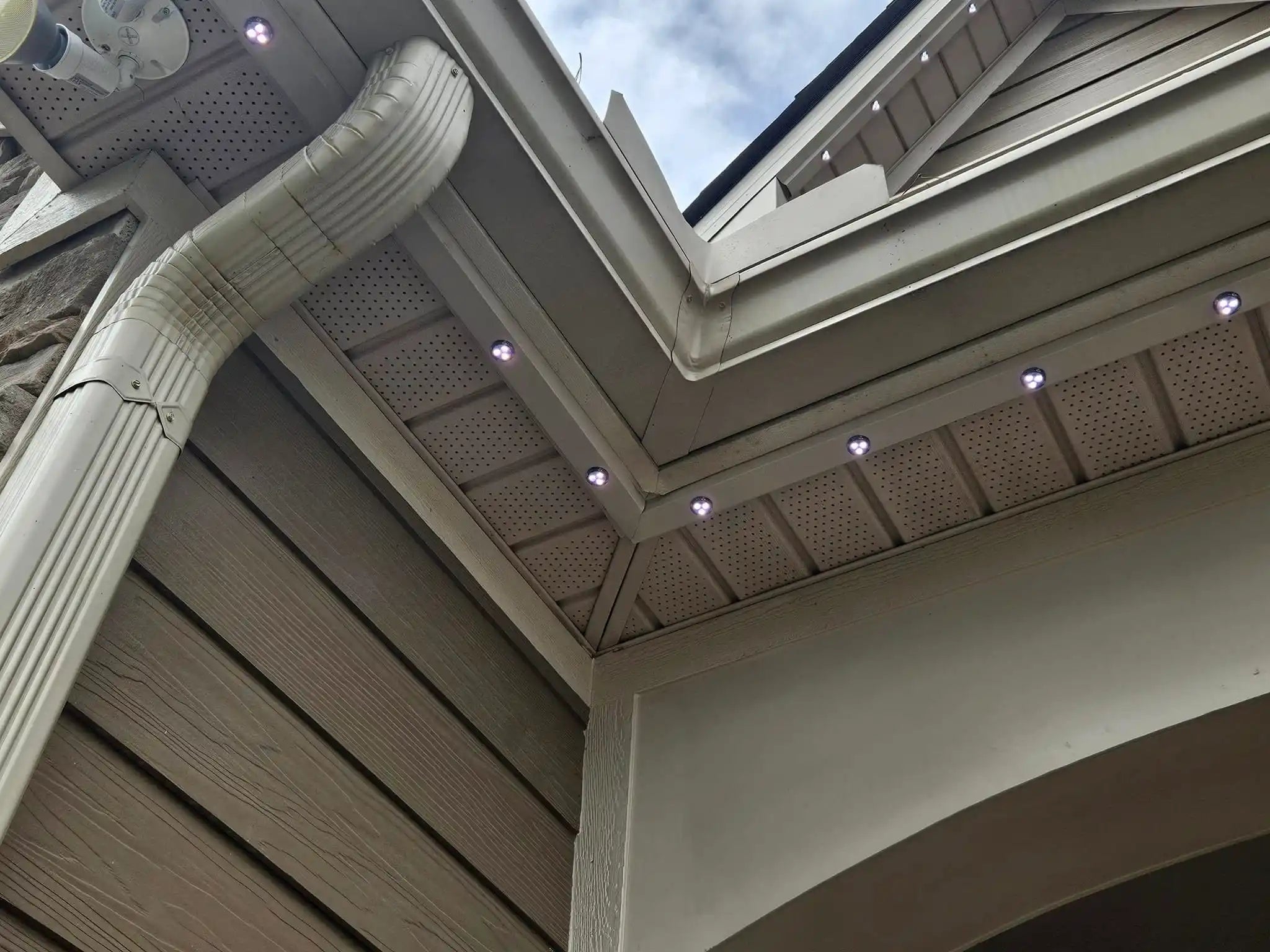

Perfect for 30mm Holes

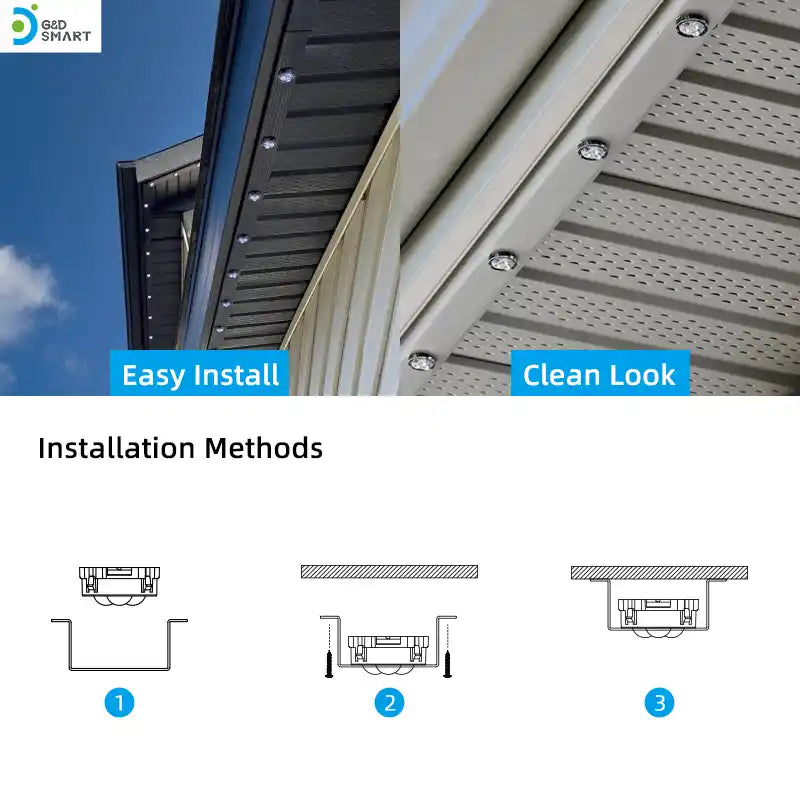

We are now offering 30mm lights strand which are perfect for any tracks with 30mm holes. Multiple spacing can meet different needs.

Various Track Shapes

Adjustable diopter lenses offer personalized focusing power - so you can find your viewing sweet spot.

Many Event Modes Options

Easy to put on and take off. The proprietary dual-hinge fit design ensures both comfort and stability for different head shapes and sizes.

WHY CHOOSE US

OUTSTANDING EFFECT, INTUITIVE EXPERIENCE

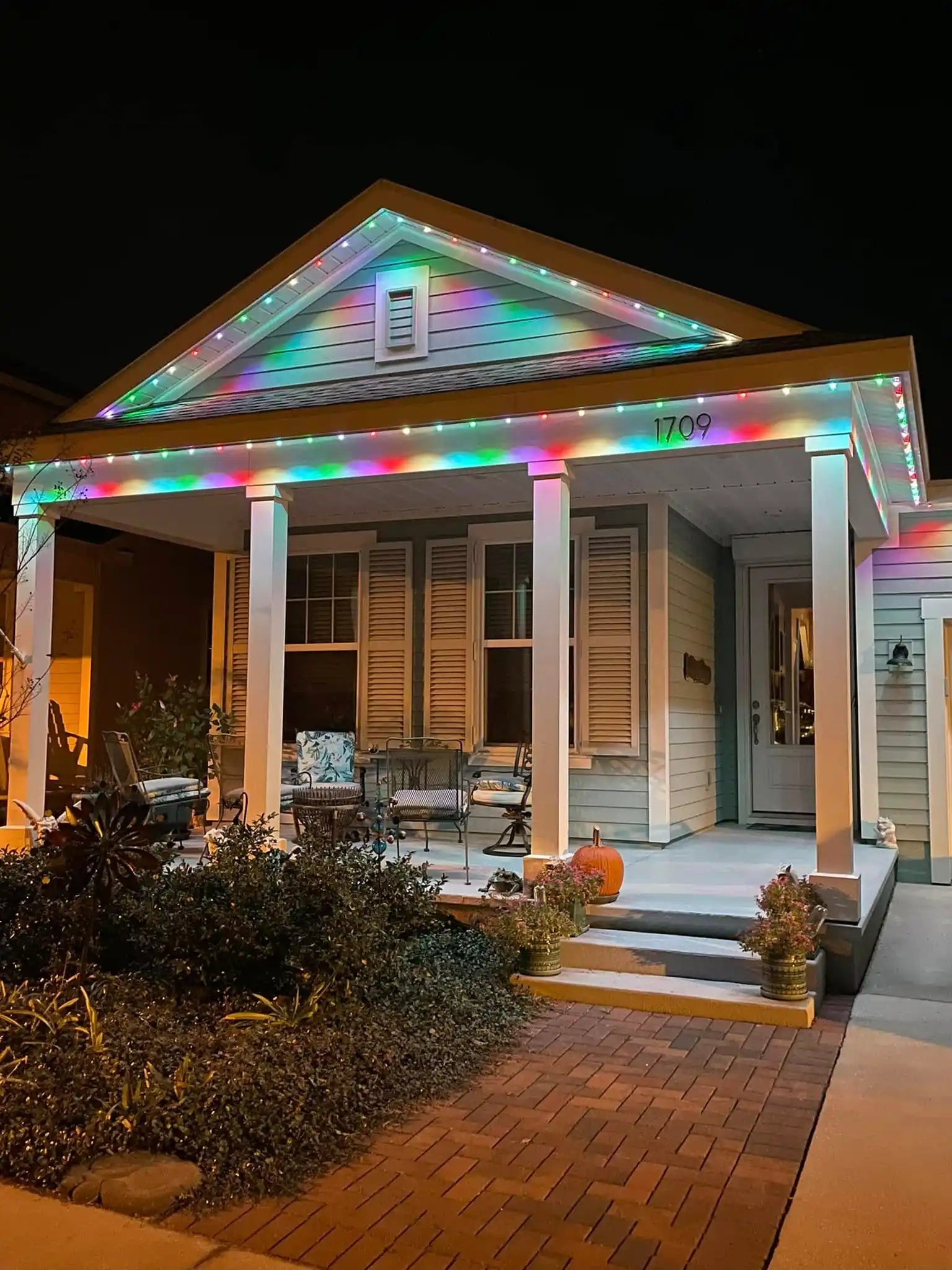

“I've had my permanent outdoor lights installed for over eight months, and I'm absolutely thrilled! G&D Smart provided a top-notch product, and the installation was seamless. The lights look stunning, and they’ve been working perfectly without any issues since day one. I wholeheartedly recommend their services!”

Emma Thompson

5.0

“We're incredibly pleased with G&D Smart Lighting! Their team was quick, professional, and delivered exceptional results. The lights look amazing, and the price was very reasonable. We’re so glad we chose them! With so many customizable options, the holidays are going to be extra special.”

Emily Davis

5.0

“My permanent trim lights from G&D Smart Lighting have been up for almost a year, and they’re still perfect! The quality is top-notch, and everything has worked without a hitch. If you’re thinking about getting outdoor lights, G&D is definitely the best choice!”

Michael Brown

5.0

“G&D Smart Lighting did an outstanding job! The installation was fast and professional, and our lights look spectacular. The price was very reasonable, and the customization options add such a festive touch to any occasion. We’re so glad we chose them!”

James Wilson

5.0

FOR PERMANENT LIGHTS PROFESSIONALS

OUR FEATURED ACCESSORIES

20mm Single Diode Permanent Outdoor Lights

C5205 Permanent Outdoor RGBW Pixel Lights

Professional 24V Lighting System for Eaves & Year-Round Decor

Technical Specifications

Model No.	Type	Voltage	Power	LEDs/Unit
C5205	RGBW	24V	0.96W	1

Key Parameters:

Color Depth: 8-bit (256 levels)
Housing: Transparent cover + gray base
Waterproofing: Full PU potting (IP67)
Wiring: 4×20AWG black
Connectors: 3-pin waterproof (150mm)

Why Choose C5205?

✅ Extended Transmission: 36V operation for longer runs
✅ Commercial Durability:

IP67 waterproof rating
3-year anti-yellowing guarantee
✅ High-Performance Lighting:
5054 RGBW LEDs (3000K + colors)
1W max power for brighter illumination

Applications

🏡 Eaves Lighting: Permanent outdoor installation
🎄 Holiday Decor: Christmas, Halloween displays
🏙️ Architectural: Building facades, commercial signage

12mm Single Diode Permanent Pixel Lights

P23 Pixel Lights – High-Voltage Permanent Outdoor RGBW Lighting System

Professional 120-277VAC Pixel Modules for Architectural & Holiday Lighting

Key Features

⚡ High-Voltage Ready

120-277VAC Input: Direct mains voltage compatibility (50/60Hz)
24V DC Output: SMA80-150mA constant current driver for stable performance

🌈 Premium RGBW Lighting

SN16704 IC Chip: TTL control protocol with 8-bit color depth (256 levels)
5054 RGBW LEDs: 2700K-6500K tunable white + vibrant colors
5mm High-Output LEDs: 0.96W/pixel brightness

🛡️ Industrial-Grade Protection

IP67 Waterproof: Full potting with transparent PU resin
UV-Resistant & V0 Flame-Retardant: -30°C to +60°C operation

🔧 Engineered for Easy Installation

Compact Design: 50m/roll (256 LEDs) with 20AWG wiring
Dual Mounting Options:
- Trim/Perforation Mount: Fits standard aluminum profiles
- Adhesive Backing: 3M VHB tape compatible

12mm Bullet Pixel Lights

P12A Pixel Lights – Ultra-Slim High-Density RGB Lighting Solution

Professional-Grade Pixel Modules for Architectural & Decorative Lighting

Key Features

🔆 180° Wide-Angle Illumination

Transparent PC Housing: Crystal-clear light diffusion with zero hotspots
High-Density LEDs: 120mm pixel spacing (50 LEDs/string) for seamless effects

🛡️ Military-Grade Protection

IP67 Waterproof: Full dust/water resistance via potting process + ultrasonic welding
UV-Resistant & V0 Flame-Retardant: Withstands extreme outdoor conditions (-30°C to +60°C)

⚡ Precision Control

S2811C/LB1908/19243 ICs: SPI protocol support for buttery-smooth 8-bit color transitions
Dual Voltage Options:
- 12V (W01/W02): 0.15W-0.5W/pixel for energy-efficient designs
- 24V (W03): 0.25W/pixel for long-distance runs

Technical Specifications

Model	P12XAW01 (12V)	P12XAW02 (12V)	P12XAW03 (24V)
IC Chip	S2811C	LB1908	19243
Power	0.5W/pixel	0.15W/pixel	0.25W/pixel
Housing	Transparent PC + Dome Lens (30mm Ø)
Connectors	13.5B 3-core waterproof (150mm leads)
Certifications	IP67, UL94 V0, UV400

Why Engineers Choose P12A?

✅ Plug-and-Play: Pre-assembled strings with 22AWG wiring + 3M 2228 adhesive backing
✅ Architect-Ready: Compatible with standard aluminum profiles (perforated/trim mounting)
✅ OEM Flexible: Custom pixel counts/spacing available (MOQ 500 units)

Applications

🏙️ Building Facades: Outline lighting with 120mm perfect spacing
🎭 Stage Productions: Pixel-mapping for dynamic stage designs
🎄 Holiday Decorations: Theme parks, retail displays

FIND YOUR ANSWERS HERE

FREQUENTLY ASKED QUESTIONS

What makes our permanent lights stand out?

With 16 years of expertise in LED lighting, G&D Smart delivers premium, high-quality outdoor lighting solutions. Our lights are designed for easy installation, offer customizable voltage options (12V, 24V, 36V RGBW systems), and come with a three-year warranty. Certified with ETL and an IP67 rating, they ensure durability and safety in various environments.

What spacing are available for the light strings?

G&D Smart offers pre-configured light strings with spacing options of 4 inches, 6 inches, 9 inches, or 12 inches, allowing you to choose the perfect fit for your installation needs, whether for residential or commercial applications.

Can I customize the appearance of the lighting tracks?

Yes! SHLED provides track color options in black, white, grey, or brown, allowing you to select either a discreet look that blends with your property or a bold design that stands out.

Does we offer branding customization for businesses?

Absolutely. G&D Smart supports turnkey branding, enabling you to add your logo to both the light fixtures and control boxes. We offer OEM and ODM services to meet your specific branding requirements.

What is the warranty and durability of our LED lights?

Our LED lights come with a three-year warranty and an IP67 rating, ensuring they are waterproof and dustproof for reliable performance in harsh outdoor conditions. With 16 years of manufacturing experience, quality is guaranteed.

Are our lights easy to install for professional use?

Yes, our lights are designed for easy installation with pre-configured string lengths (4", 6", 9", or 12"). This makes them suitable for both DIY enthusiasts and professional installers looking for a hassle-free setup.

Where are our products manufactured, and how are they distributed in the U.S.?

G&D Smart's headquarters and manufacturing are based in China, leveraging 16 years of production expertise. We also maintain overseas warehouses in the U.S. to ensure fast and efficient delivery to our customers.
