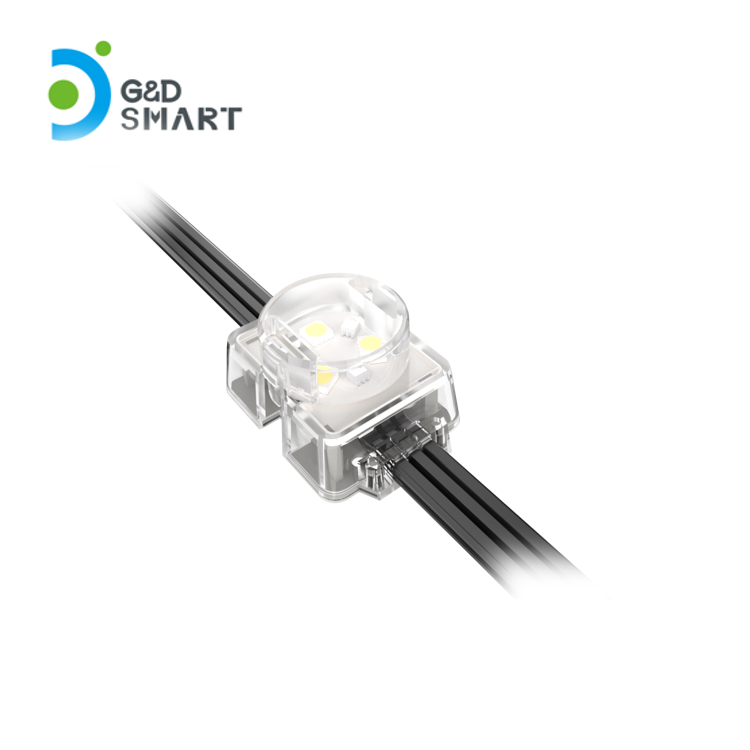

C5206 48V Permanent Outdoor Lights

C5206 48V Permanent Outdoor Lights

48V RGBW permanent outdoor lighting module designed for professional longer-run roofline systems.

Key Specifications

• Voltage: DC48V
• Power: 1W
• Light source: 5050 RGBW, RGBW 3000K
• Control: SPI
• Spacing: 9 inch
• Standard string: 5 pcs
• Dimensions: Ø30 × H16 mm
• Shell: 945U PC, transparent
• Beam angle: 120°
• IP rating: IP67
• Operating temperature: -20 to 60°C
• Lifespan: ≥50,000 h
• Flame retardant: UL94-V0
• UV resistance: UV-5
• Catalog certification: CUL + FCC

48V System Architecture

C5206 is matched to the GC08 48V control-box platform, available in 350W and 600W capacity options. The final track, cable, signal-accessory and software configuration should be confirmed for the specific 48V project.

• GC08 48V control-box platform — 350W or 600W according to project design
• 48V Permanent Lighting System
