35mm / 50mm 24V Pixel Ball Lights
35mm / 50mm 24V Pixel Ball Lights
Couldn't load pickup availability

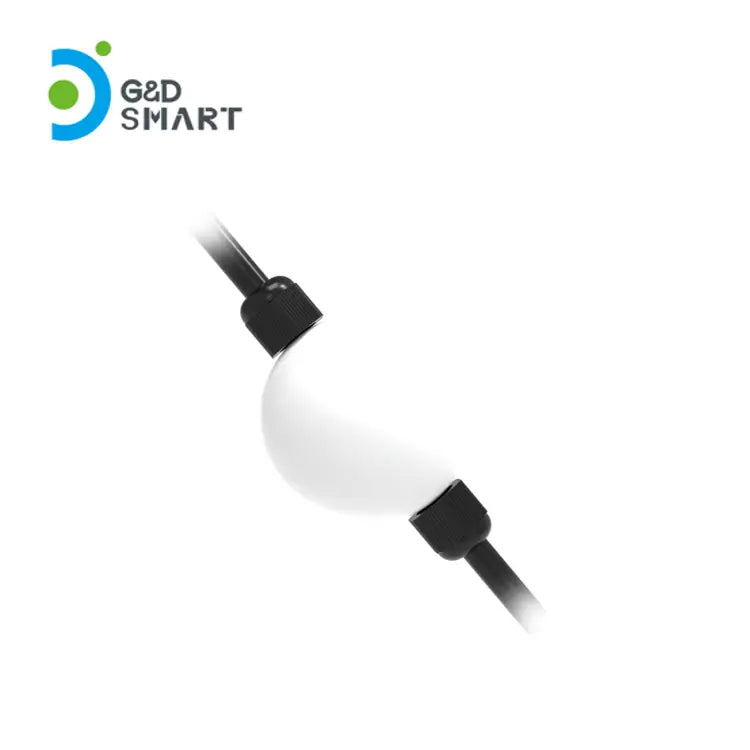

O50XB Pixel Lights – Professional 360° 3D Ceiling Light System
High-Density RGB Light Strings for Immersive 3D Effects
Key Features
✨ True 360° Omnidirectional Lighting
-
Dual-Layer PC Housing:
- Milky white upper cover + transparent inner components
- UV-resistant (UV400 treatment) with anti-yellowing guarantee
🛡️ Industrial-Grade Protection
- IP67 Waterproof: Full potting + ultrasonic welding
- V0 Flame-Retardant: UL94 V0 certified for commercial spaces
⚡ Precision Control
- SM16703/SM16716 IC: SPI protocol with 8-bit grayscale (256 levels)
- 24V High Voltage: 1.4W/pixel (6x 3535 RGB LEDs per module)
Technical Specifications
| Parameter | O50XB-W01 Specification |
|---|---|
| Dimensions | Ø50×77.5mm |
| Input Voltage | 24V DC |
| Power | 1.4W/pixel |
| LED Type | 3535 RGB (6 LEDs/module) |
| Control Protocol | SPI (TTL convertible) |
| Color Depth | 8-bit (256 levels) |
| Protection | IP67 (PU potting) |
| Cable | 3×20AWG (100mm length) |
| Connectors | 13.5B 3-pin waterproof |
| Standard Config | 50 LEDs/string |
Why Choose O50XB?
✅ Plug-and-Play: Pre-assembled strings with waterproof connectors
✅ Commercial Ready: 24V operation for stable long-distance runs
✅ Perfect for 3D Arrays: Hanging-ready design for volumetric displays
Applications
🏛️ 3D Ceiling Displays: Museums, exhibition halls
🏙️ Architectural Features: Atriums, stairwell lighting
🎭 Stage Productions: Hanging light curtains
