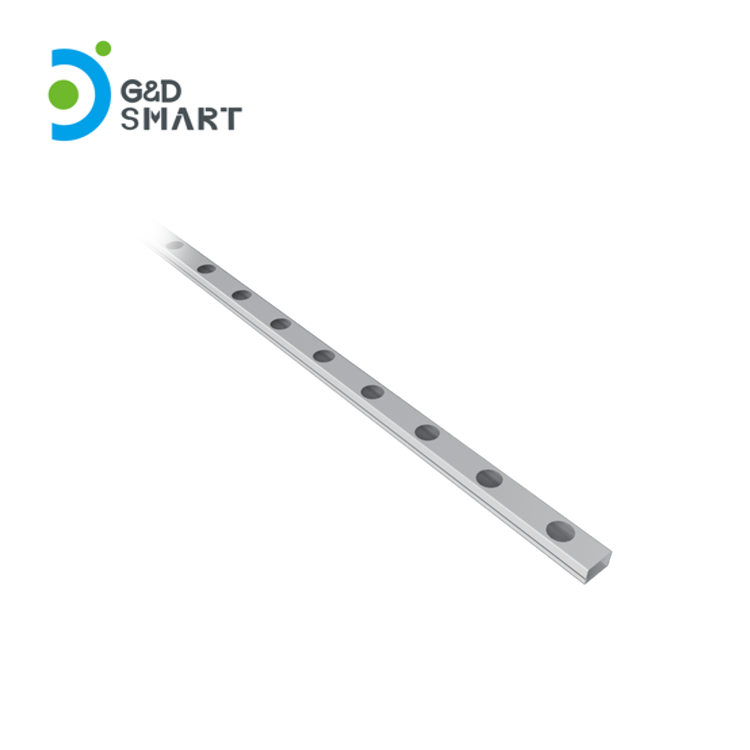

C5204 Permanent Outdoor Lights

C5204 Permanent Outdoor Lights

RGBW permanent outdoor lighting module for professional roofline systems, available in 12V, 24V and 36V versions.

Models

• C5204A: DC12V, 0.86W, 5050 RGBW, RGBW 3000K, SPI.
• C5204B: DC24V, 0.96W, 5050 RGBW, RGBW 3000K, SPI.
• C5204C: DC36V, 0.96W, 5050 RGBW, RGBW 3000K, SPI.

Key Specifications

• Dimensions: Ø30 × H16 mm
• Shell: 945U PC, transparent
• Beam angle: 120°
• IP rating: IP67
• Operating temperature: -20 to 60°C
• Lifespan: ≥50,000 h
• Flame retardant: UL94-V0
• Catalog certification: CUL + FCC
• Wire: UL 2468 20AWG
• Spacing options: 4, 6, 9 and 12 inch, plus single-piece format

System Compatibility

C5204 is designed to work with the GC08 control-box platform. Select the GC08 voltage to match the lamp version, then choose 350W or 600W capacity according to the project load and branch layout.

• GC08 control-box platform — 12V / 24V / 36V, 350W or 600W according to project design
• C5204 Installation Profile A
• C5204 Installation Profile B
• SH-M12A Extension Cable
• SFQ0401 Signal Amplifier

Compare 12V, 24V and 36V system solutions
