24V Glare Shield Outdoor Spot Lights
24V Glare Shield Outdoor Spot Lights
Couldn't load pickup availability

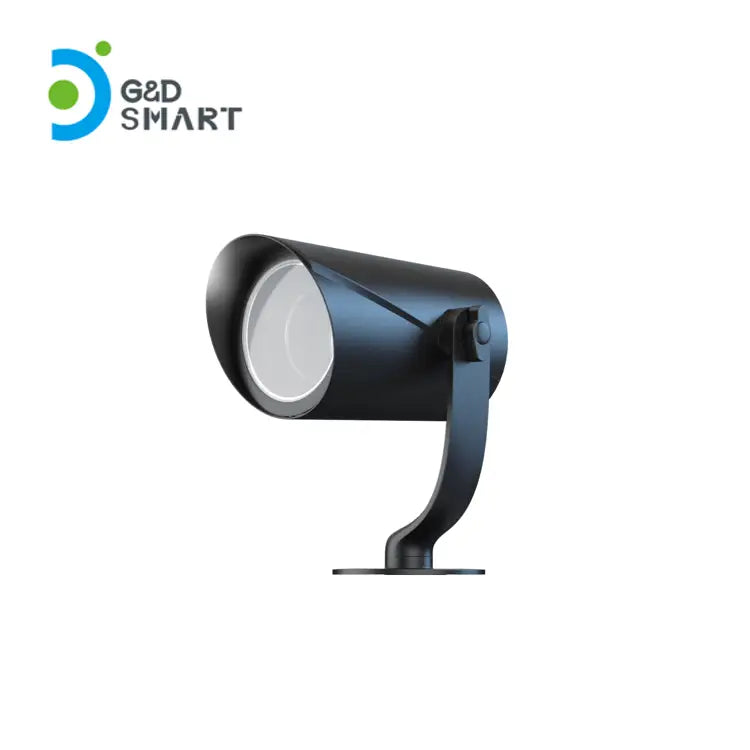

C6604 Outdoor RGBW Spot Light
Professional 10W High-Power Lighting Solution
Key Features
⚡ High-Performance Lighting
- 24V DC Input: Stable 10W output
- Dual-LED Design: 2835 RGBW LEDs (30+8 configuration)
🌈 Premium Color Control
- SM16824E IC Chip: SPI protocol with 8-bit precision
- 16 Million Colors: 3000K warm white + full RGB spectrum
🛡️ Industrial-Grade Protection
- IP67 Waterproof: Structural waterproofing design
- Die-Cast Aluminum Housing: Superior heat dissipation
🔧 Professional Installation
- Integrated Wiring: 3×20AWG black cables (1000mm)
- Quick-Connect System: 13.5B 3-pin waterproof connectors
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | C6604 |
| Type | RGBW Spot Light |
| Color Temp | 3000K |
| Control Protocol | SPI |
| IC Chip | SM16824E |
| Voltage | 24V DC |
| Power | 10W |
| LEDs | 2835 (30+8 config) |
| Housing | Die-cast aluminum + transparent cover |
| Waterproof | IP67 |
| Wiring | 3×20AWG black (1000mm) |
| Connectors | 13.5B 3-pin waterproof |
Why Choose C6604?
✅ Dual-Purpose Design: Perfect as both spot light and accent light
✅ Superior Heat Dissipation: Die-cast aluminum body
✅ Precision Optics: Built-in nano reflector for uniform lighting
✅ Easy Installation: Pre-wired with 1m waterproof cables
Applications
🌿 Landscape Lighting: Tree uplighting, architectural features
🏡 Path Lighting: Walkways, garden trails
🏙️ Commercial Lighting: Building facades, signage
🎭 Event Decor: Stage lighting, festive decorations
